Overview
The Prince Series (KL-D-Y16X / Y20X / Y24X) is a slim ductless purifier built around an ESP field with an LCD control panel. Unlike HEPA-based units it carries only the electrostatic cell (no HEPA cartridge), which keeps maintenance simple and cost-effective for everyday grease capture. The SUS201/304 housing is corrosion resistant and easy to clean, and the digital panel makes speed and status clear at a glance. It suits shops that want a compact, reliable purifier without the recurring cost of filter cartridges. UV light can be added on request, though activated-carbon modules are not supported on this series.
Key Features
- ESP field only – no HEPA cartridge to replace

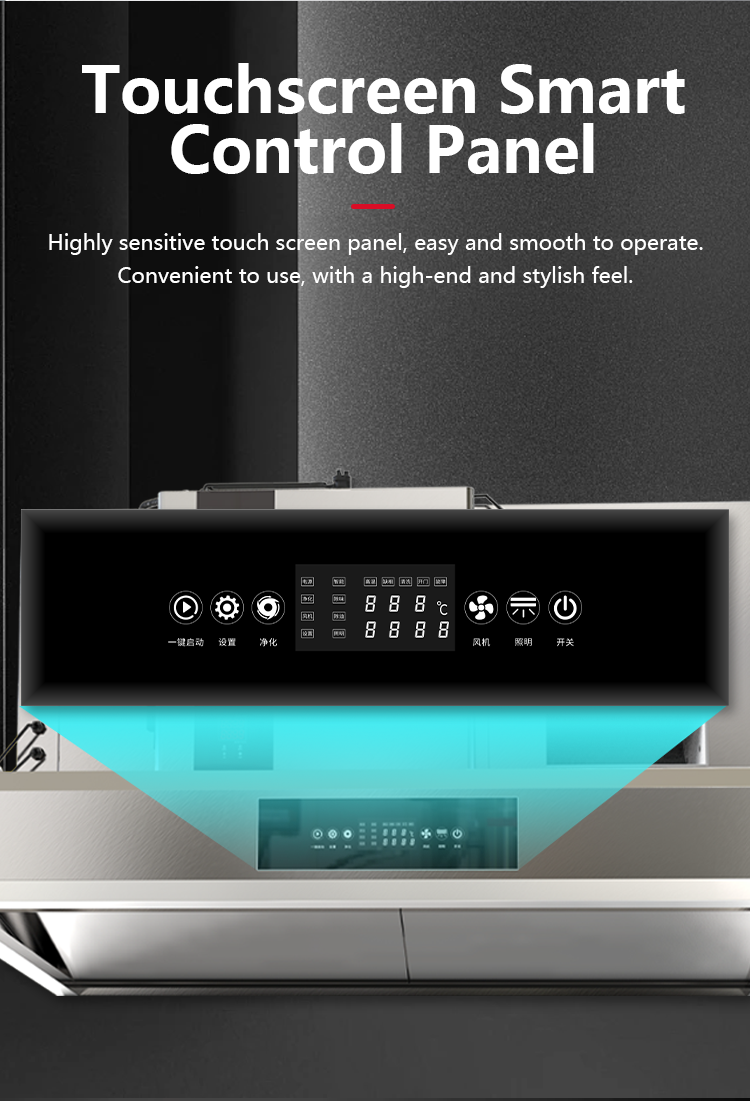

- LCD control panel for speed and status
- SUS201/304 housing, corrosion resistant
- Simple, low-cost everyday grease capture
- UV can be added; carbon module not supported
Application Scenarios
- Mid-Size Restaurants: The go-to purifier for 80-150 seat restaurants that need reliable grease capture without the recurring cost of HEPA cartridge replacements.
- Food Courts: Slim profile and low maintenance make it ideal for multi-tenant food courts where each stall operates independently under shared ventilation rules.
- Hotel Satellite Kitchens: Suitable for hotel floor pantries, breakfast stations, and poolside grills that need a self-contained, easy-to-clean unit.
- Japanese & Korean BBQ: Handles tabletop grill smoke in yakiniku and Korean BBQ restaurants where diners cook at the table and visible cleanliness matters.
- Supermarket Hot-food Sections: Deploys above rotisserie, fried-food, and deli counters in supermarkets and hypermarkets with public-facing cooking displays.
Specifications
| Parameter | Value |
|---|---|
| Rated Power | 800 – 1,500 W |
| Max Airflow | 4,000 – 5,000 m3/h |
| Filtration | ESP field only (no HEPA) |
| Purification Efficiency | >= 95% |
| Dimensions (LxWxH) | 1,600 – 2,400 x 1,100 x 1,365 mm |
| Housing | SUS201 / 304 Stainless |
| Control | LCD panel |
| Weight | 130 – 200 kg |
| Certification | CE (CE2 on Y24X) |
Specifications show the series typical configuration. Exact values vary by model and customization (voltage, flange, material). Contact us for a model-specific datasheet.
