Overview

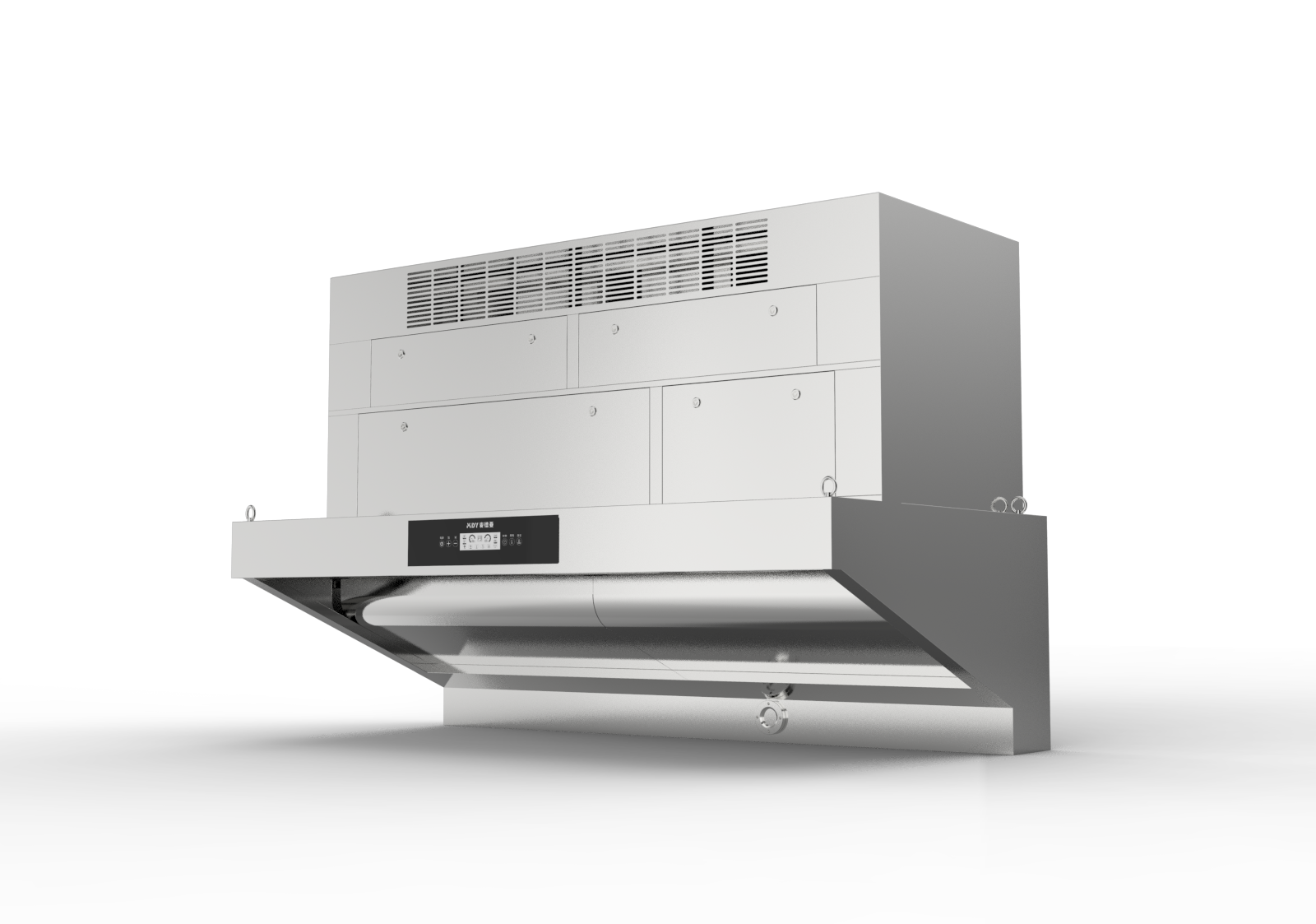

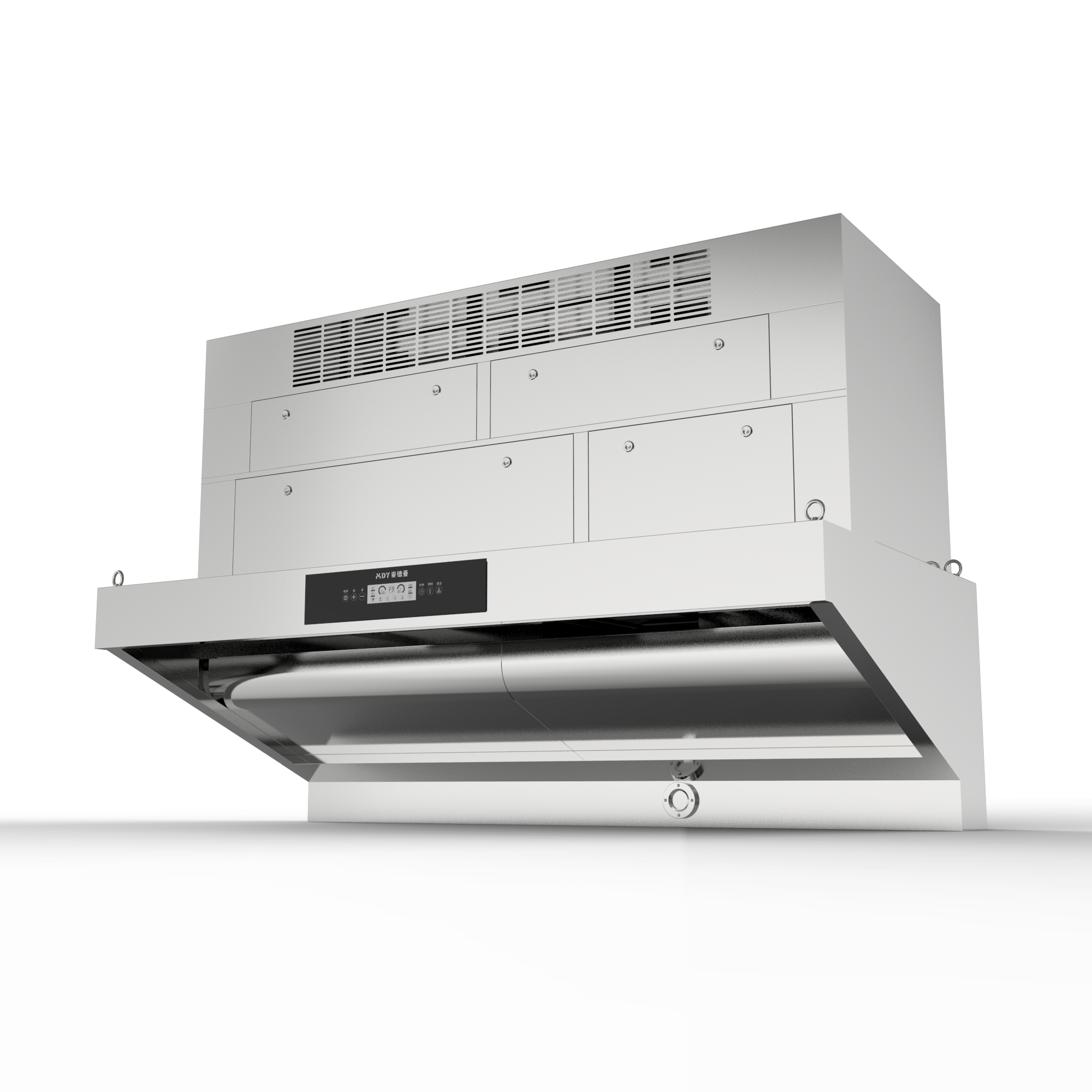

The Heavy-duty Series (KL-D-ND12 to ND24) targets heavy Chinese wok cooking, fry stations and community canteens. Its four-stage system – water-cycle filtration, high-voltage ESP, polymer mesh and deodorization – reliably treats dense smoke. The all-stainless body is modular: upper and lower sections split for easy installation (just four expansion bolts when ceiling-hung) and tool-free disassembly for cleaning. A built-in water tank (36 L on the 1.6 m model) has a level sensor that blocks startup when empty, plus inlet, drain and overflow ports for safety. Mature and widely deployed, the lower section is fully washable for low day-to-day maintenance.
Key Features
- Four-stage: water-cycle + ESP + polymer + deodorization
- All-stainless modular body, split for easy install
- Built-in 36 L water tank with level sensor
- Inlet, drain and overflow ports for safety
- Lower section fully washable, low maintenance
Application Scenarios
- Chinese Wok Kitchens: Built for the intense smoke and grease of high-heat wok cooking — the water-cycle stage captures heavy particulate before it reaches the ESP.
- Community & Factory Canteens: Handles 500+ meals per shift with continuous-duty design, modular body, and washable lower section for low daily maintenance.
- Hotel Banquet Kitchens: Reliable 24/7 performance for hotel main kitchens that prepare banquets, buffets, and room service simultaneously.
- Chinese Restaurant Chains: Engineered for the steam, oil, and high-volume output of Sichuan, Cantonese, and Hunan cuisine restaurants with heavy wok usage.
- Central Kitchens: Deployable in centralized meal-prep facilities where consistent purification across multiple cooking lines is mandatory for compliance.
Specifications
| Parameter | Value |
|---|---|
| Rated Power | 1,300 – 2,800 W |
| Max Airflow | 4,000 – 7,000 m3/h |
| Filtration | Water-cycle + ESP + polymer + deodorization |
| Purification Efficiency | >= 99% |
| Dimensions (LxWxH) | 1,200 – 2,400 x 1,100 x 1,365 mm |
| Housing | SUS201 Stainless (modular) |
| Water Tank | 36 L (1.6 m model), level sensor |
| Weight | 130 – 200 kg |
| Certification | CE |
Specifications show the series typical configuration. Exact values vary by model and customization (voltage, flange, material). Contact us for a model-specific datasheet.
