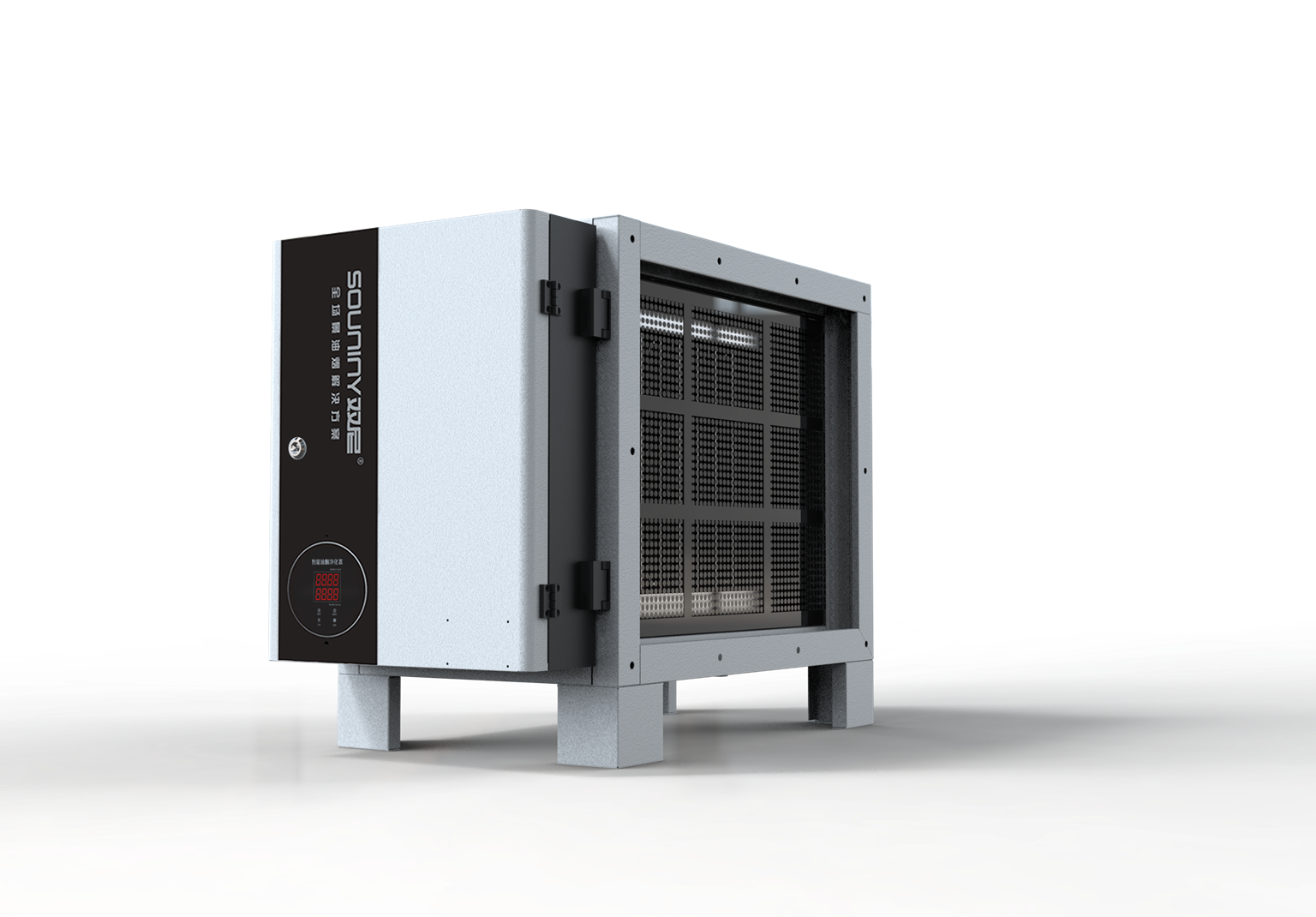

A well-specified ESP system can be undone by poor installation. Field experience across thousands of installations has identified recurring patterns of errors that compromise performance and shorten service life.
| Parameter | Specification |
|---|---|
| Top 10 Mistakes | 1. Inadequate access clearance; 2. Incorrect airflow direction; 3. Wrong voltage/no dedicated circuit; 4. Drain not connected or sloped; 5. Duct leakage upstream; 6. Make-up air short-circuiting; 7. Vibration transmission; 8. Control wiring errors; 9. Missing access panels; 10. No commissioning |
| Pre-Installation Checklist | Verify ESP fits hood; Confirm dedicated circuit; Confirm drainage 1:100 slope; Verify 1.2m cell removal clearance; Check structural support; Coordinate with sprinkler/lighting/ceiling trades |
| Commissioning Must-Do | Airflow measurement; Particle efficiency test; Smoke capture video; Control functional test; Safety interlock test; Document all results |
| Post-Installation | First-week performance check; Monthly inspection for 3 months; Adjust cleaning frequency based on actual build-up; File commissioning report with O&M manual |
Application Scenarios
- 25-location installation audit: Chain audit found: 32% had inadequate cell access, 20% had make-up air blowing at hoods, 12% had shared ESP electrical circuits, 8% had back-pitched drainage. All correctable but each cost $500-2000. Now requires third-party commissioning for all new installations.
- Hotel BIM coordination (Toronto): BIM model identified ESP access zone clash with sprinkler system before construction. Sprinkler relocated during design. Zero field modifications. Installed on schedule.
- Phased installation in operating kitchen (Chicago): Three hood sections installed over 3 nights (one per night) with full commissioning before breakfast service. Zero revenue days lost. Requires precise planning.
- Installation quality checklist: Project management firm checklist: verify serial number, inspect shipping damage, confirm all components, verify dimensions, check electrical, test drainage, physically remove/replace cell, smoke capture video, complete commissioning report. Adopted by 10+ chains.
